Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable

Product Categories
guangzhou fiber cablepuls co ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable

Brand Name : PUNAISGD

Model Number : ADSS-36B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : Fiber Optic ADSS Cable

Type : ADSS-36B1.3

Number of Conductors : 36b1.3

Application : Telecom Comunication

Strength member : Aramid Yarn

Jacket color : Black Color PE

Fiber type : G652D,50/125

Span : 50 100 150 m

Installation Method : Aerial

Length : 4km/Drum

Strength Member Material : FRP/ARMID YARN

Storage Temperature : -40℃~+85℃

Cable Weight : 200 kg/km

Cable Model : Double Jacket ADSS/ Single Jacket

Package : Wooden Drum/Customized

Contact Now

ADSS Fiber Optic Cable ADSS-24B1-100M Single Sheath -0D:10.0mm Customizable PE/Fiber Material Lightweight Tensile Outdoor Fiber Cable

In most cases, ADSS cable will provide an efficient and optimal solution for aerial cabling or outside plant (OSP) deployments.However, the most remarkable advantages of optical fibre are:

  • Its dependability and low fiber cable price.
  • A fiber optic cable is strong enough to allow installation lengths of up to 700 meters between support towers.
  • ADSS cable is lightweight and small in diameter to reduce the load on tower structures caused by cable weight, wind, and ice.
  • To maintain low optical loss throughout the cable’s life, the internal glass optical fibres are supported with no strain in the cable’s design.
  • The cable is jacketed to protect the fibers from moisture.
  • The jacket also shields the polymer strength elements from the effects of UV light from the sun.
  • Circuits up to 100 km long are possible without repeaters using single-mode fibre cables and light wavelengths of 1310 or 1550 nanometers.
  • A single cable can transport up to 144 fibers.
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
PRODUCT SPECIFICATIONS
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable

Dimensions of Cable Constructions

Fiber count

Structure

Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4

1+6

4

1.9±0.1

2.0/2.0

1.6

9.5±0.2

80

6

1+6

6

2.0±0.1

2.0/2.0

1.6

9.8±0.3

80

8

1+6

4

1.9±0.1

2.0/2.0

1.6

9.8±0.3

80

12

1+6

6

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

24

1+6

12

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

36

1+6

12

2.2±0.1

2.0/2.0

1.6

10.0±0.3

85

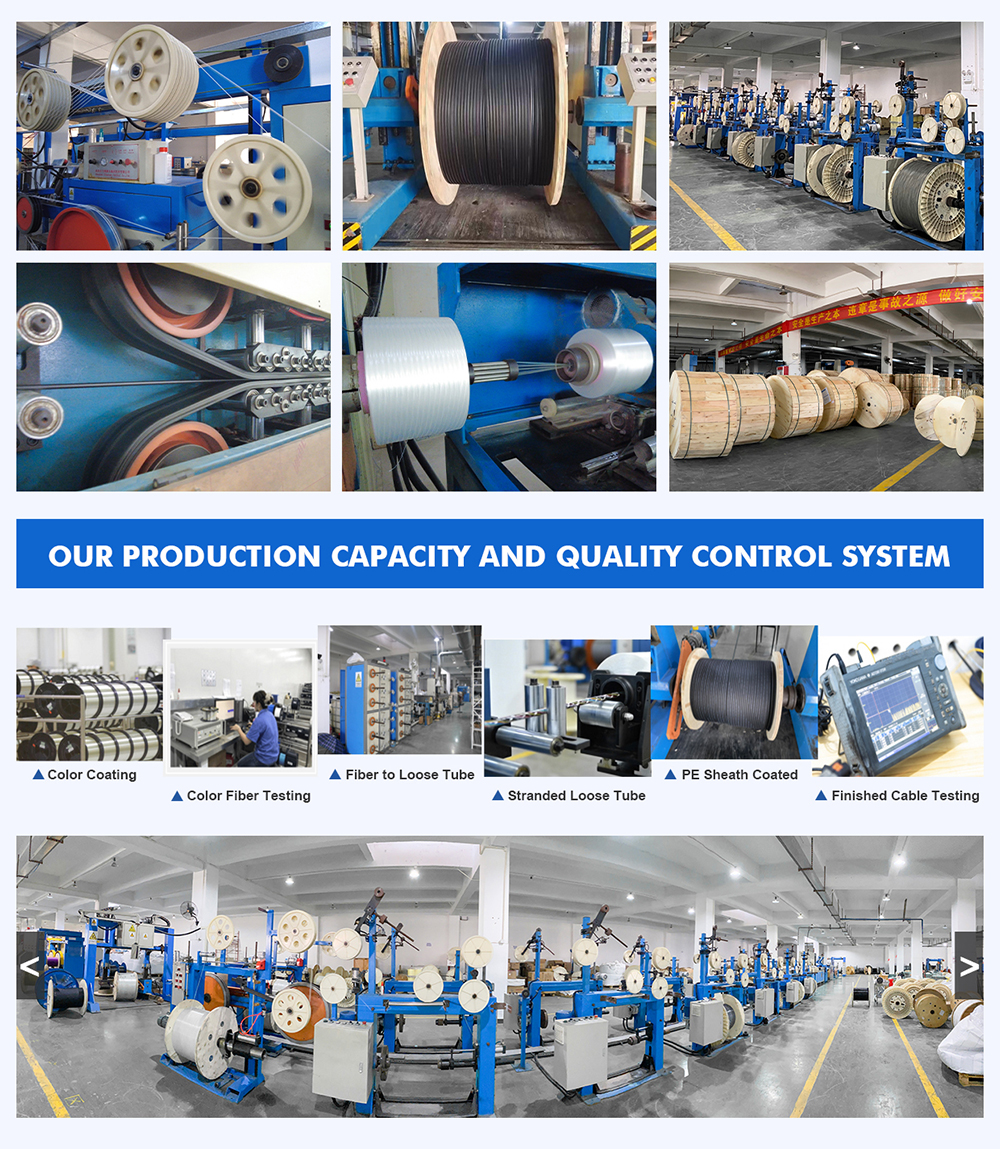

Factory veiw
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable

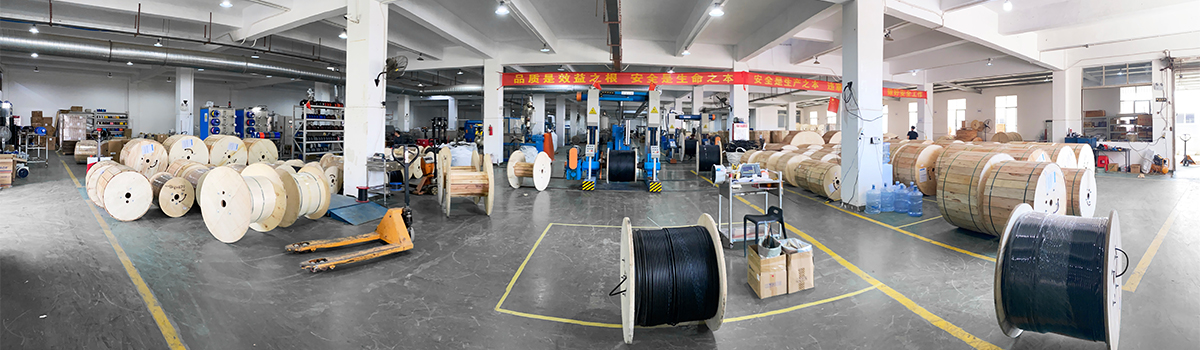

Our Factory
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
Outdoor Fiber Optic ADSS Cable ADSS-24B1-100M Aerial Optic Fiber Cable
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
