Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : ASU-6B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : ADSS Fiber Optic Cable

Type : ASU-6B1.3

Number of conductors : 6

Fiber type : G652D

Strength member : frp *2pcs

Outer Jacket Material : Single PE Jacket

Span : 80m 120m

Hs Code : 854470000

OEM : YES

Contact Now

ADSS Fiber Optic Cable ASU(Mini ADSS) Aerial Self-Supported ASU Fiber Optic Cable

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication

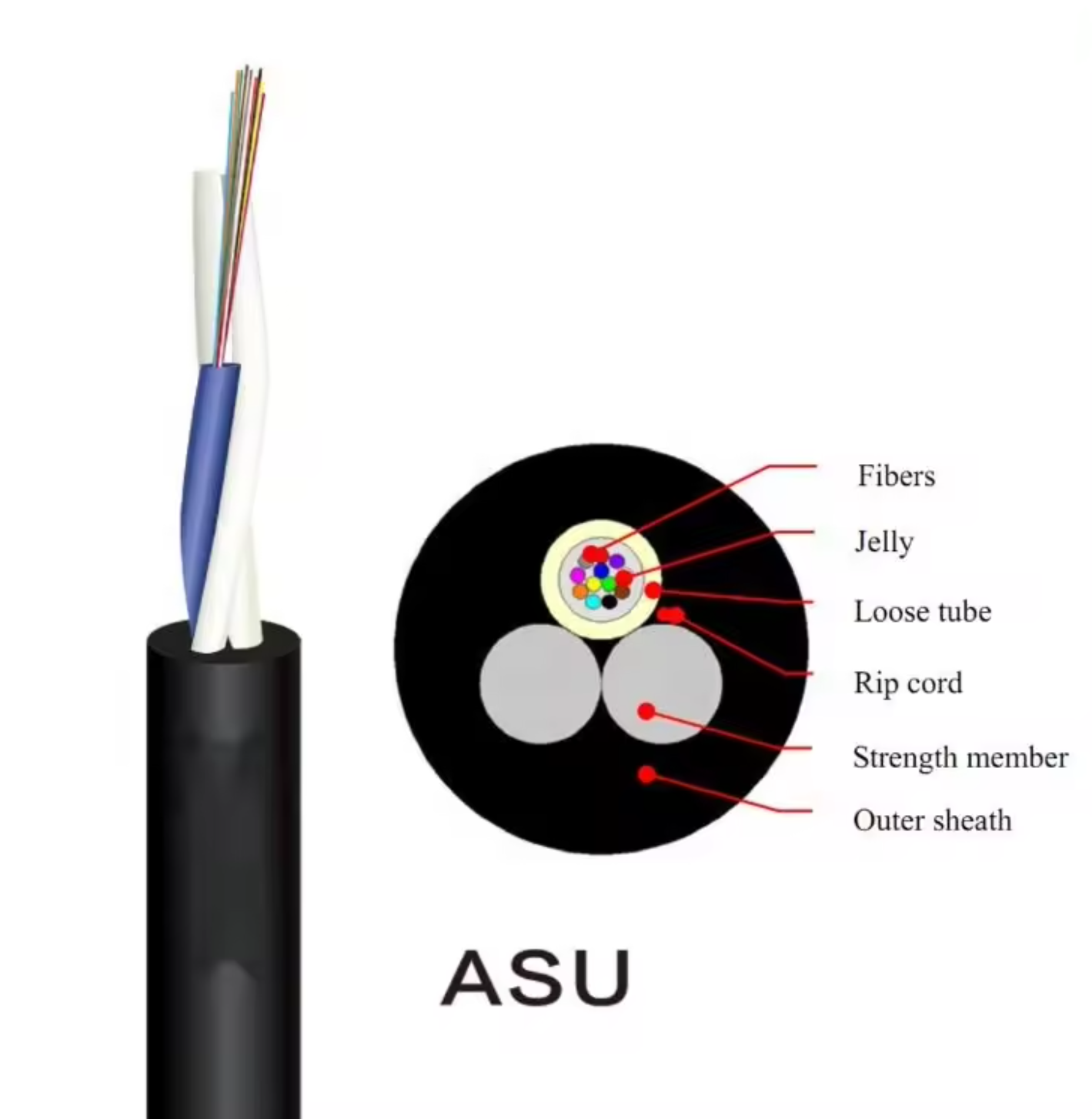

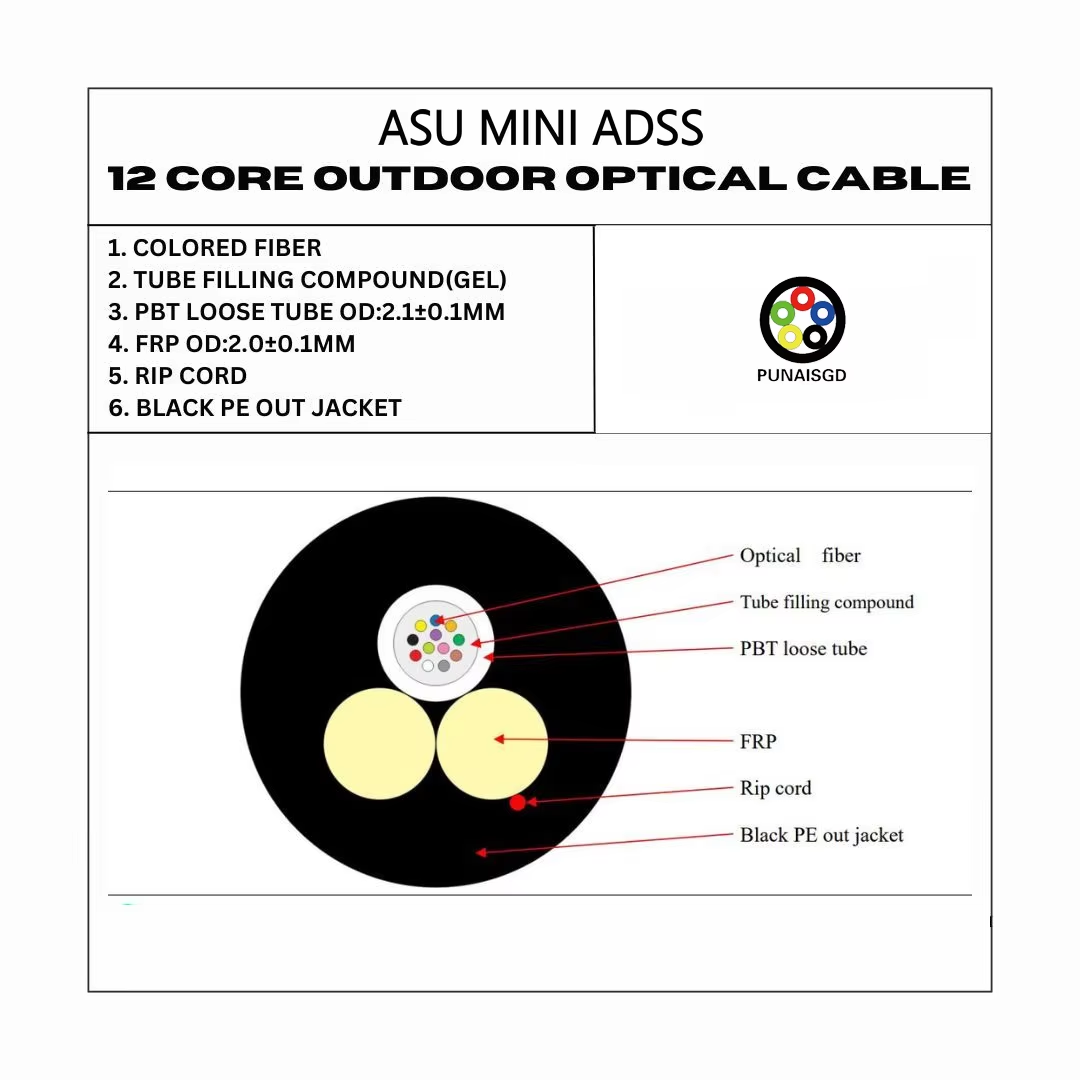

Structure: Single loose tube construction, jelly compound filled, then PE outer sheath with two non-metallic strength members combined.

Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable

PRODUCT SPECIFICATIONS
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Optical Characteristics
Cable Type
Fiber Count
Cable Diameter (mm)
Cable Weight (kg/km)
Tensile Strength long/short term (N)
Crush Resistance long/short term (N)
Bending Radius Static/Dynamic (mm)
ASU
2-12
7.0
60
600/1500
300/1000
10D/20D

Item
Unit
Specification
Fier Tyoe
G652D
G652D
Mode filed Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.0±0.1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
245±7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
μm
≤1260
Attenuation Coefficient
1310nm
db/km
≤0.36
1550nm
db/km
≤0.22
Proof stress level
kpsi
≥100
Note: Other parameters meet standard ITU-T G.652

Datasheet

Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Factory view
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Our team
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Our Factory
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
