48 Core Outdoor Aerial Cable Single Mode Large Span All Dielectric ADSS Wire

Name: 48 Core Outdoor Aerial Cable Single Mode Large Span All Dielectric ADSS Wire
Brand: PUNAISGD
Price: 1 USD

Quality 48 Core Outdoor Aerial Cable Single Mode Large Span All Dielectric ADSS Wire wholesale

Brand Name : PUNAISGD

Model Number : ADSS-48B1.3-100M

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : Outdoor Aerial Cable

Type : ADSS-48B1.3-100M

Fiber Type : Single-mode G.652D

Model No : All Dielectric Cable

Strength Member : Aramid Yarn

Cable Model : single jacket 100m Span

Package : Wooden Drum/Customized

Cable Weight : 180 kg/km

Life Expectancy : 30 Years

Outer Diameter : 9.0mm

Contact Now

48 Core Outdoor Aerial Drop Cable Single Mode Large Span Dielectric ADSS Wire

Why are fiber optic cables used?

Optical fibers are about the diameter of a strand of human hair and when bundled into a fiber-optic cable, they're capable of transmitting more data over longer distances and faster than other mediums. It is this technology that provides homes and businesses with fiber-optic internet, phone and TV services

48 Core Outdoor Aerial Cable Single Mode Large Span All Dielectric ADSS Wire

PRODUCT SPECIFICATIONS

Fiber data

Fiber Type	Attenuation		1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
Fiber Type	@1310nm(dB/KM)	@1550nm(dB/KM)	1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450

Technical Parameters

Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	100m Span Tensile Strength (N)		Crush Resistance (N/100mm)		Bending Radius (mm)
Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	Long Term	Short Term	Long Term	Short Term	Static	Dynamic
2-12	9.8	80	1000	2500	300	1000	10D	20D
24	9.8	80	1000	2500	300	1000	10D	20D
36	9.8	80	1000	2500	300	1000	10D	20D
48	9.8	80	1000	2500	300	1000	10D	20D
72	10	80	1000	2500	300	1000	10D	20D
96	11.4	100	1000	2500	300	1000	10D	20D
144	14.2	150	1000	2500	300	1000	10D	20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation	Installation	Operation
-40℃~+70℃	-5℃~+45℃	-40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

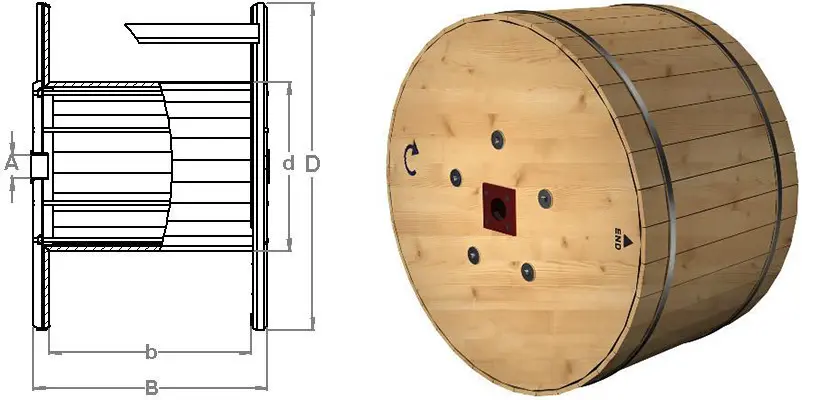

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.

The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.

Factory veiw

Our Factory
