Underground Duct GYTA Outdoor Fiber Optic Cable Stranded Aluminum Loose Tube 288 Cores SM G652D HDPE

Name: Underground Duct GYTA Outdoor Fiber Optic Cable Stranded Aluminum Loose Tube 288 Cores SM G652D HDPE
Brand: PUNAISGD
Price: 1 USD

Brand Name : PUNAISGD

Model Number : GYFTS-24B1.3-288b1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000

Delivery Time : 7days

Packaging Details : wooden drum

Type : GYFTS-24B1.3-288b1.3

Number of Conductors : 24B1.3

Strength member : FRP/steel wire

Application : duct

Outer Jacket Material : PE(Black)

Armor Layer : Aluminum

Package : Wooden Drum

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Fiber color : Blue,Orange,Brown,Aqua,Grey

Name : Outdoor Fiber Optic Cable

Contact Now

Underground Duct GYTA Outdoor Fiber Optic Cable Stranded Aluminum Loose Tube 288 Cores SM G652D HDPE

Description

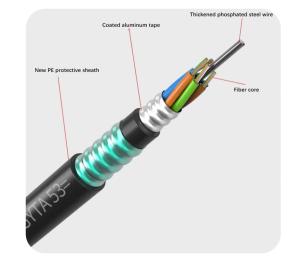

The structure underground duct GTYA fiber optic cable is that the single-mode optical fiber is sheathed in a loose tube made of high modulus plastic, and the tube is filled with a water blocking compound. The center of the cable core is a metal steel wire as central strength member to make the fiber high with higher tensile force. A layer of polyethylene needs to be extruded outside the metal reinforced core, and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact and circular cable core, the gaps in the cable core are filled with water blocking fillers.

Underground Duct GYTA Outdoor Fiber Optic Cable Stranded Aluminum Loose Tube 288 Cores SM G652D HDPE

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240

Installation Instructions

Company Profile

Product packaging

Our Advantages

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
