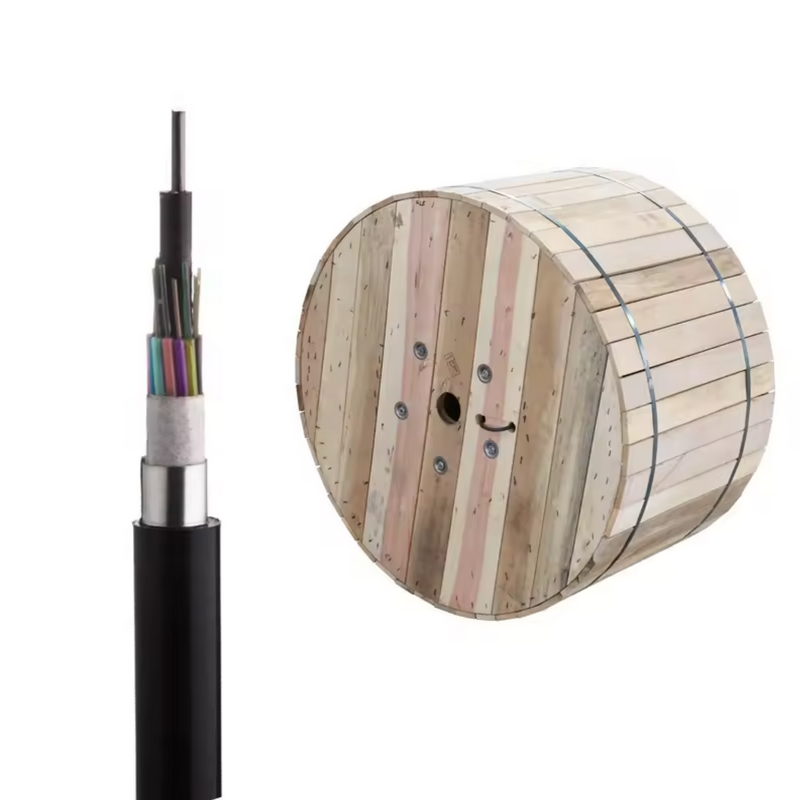

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

  • 1
  • 2

Brand Name : PUNAISGD

Model Number : GYTS-24B1.3-288b1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000

Delivery Time : 7days

Packaging Details : wooden drum

Type : GYTS-24B1.3-288b1.3

Number of Conductors : 24B1.3-288B1.3

Strength member : FRP/steel wire

Application : duct

Outer Jacket Material : PE(Black)

Armor Layer : Aluminum

Package : Wooden Drum

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Fiber color : Blue,Orange,Brown,Aqua,Grey

Name : Outdoor Fiber Optic Cable

Contact Now

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

Description:

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.


Characteristics

  1. Good mechanical and temperature performance
  2. High strength loose tube that is hydrolysis resistant
  3. Special tube filling compound ensure a critical protection of fiber
  4. Special designed compact structure is good at preventing loose tubes from shrinking
  5. PE sheath protects cable from ultraviolet radiation
  6. Crush resitance and flexibility
  7. The following measures are taken to ensure the cable watertight:
  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling

Technical parameters

Fiber Num
Outer diameter (mm)
Weight (kg/km)
Tensile Stength (N)
Crash Resistance (N/100mm)
Short term
Long term
Short term
Long term
2-30
9.5
86
≥1500
≥600
≥1000
≥300
32-60
10.2
99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5
220
146-216
16.1
229
218-300
18.5
290
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable


Dimensions of Cable Constructions

Fiber count

Structure

Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4

1+5

4

1.8±0.1

1.4/1.4

1.4

8.5±0.3

75

6

1+5

6

1.85±0.1

1.4/1.4

1.4

8.5±0.3

75

8

1+5

8

1.9±0.1

1.4/1.4

1.4

8.5±0.3

75

12

1+5

6

1.9±0.1

1.4/1.4

1.4

8.5±0.3

75

24

1+5

6

1.9±0.1

1.4/1.4

1.4

8.5±0.3

75

36

1+6

12

1.95±0.1

1.5/1.5

1.6

8.8±0.3

85

48

1+5

12

1.95±0.1

1.5/1.5

1.6

9.3±0.3

90

60

1+5

12

1.95±0.1

1.6/1.6

1.6

9.3±0.3

90

72

1+6

12

1.95±0.1

2.0/2.0

1.6

9.6±0.3

95

96

1+8

12

1.95±0.1

1.4/3.2

1.6

11.5±0.3

120

144

1+12

12

1.95±0.1

2.0/5.7

1.8

14.2±0.3

185

216

1+6+12

12

1.95±0.1

2.0/2.0

1.8

14.5±0.3

200

288

1+9+15

12

1.95±0.1

2.0/3.7

1.8

16.2±0.3

240



1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

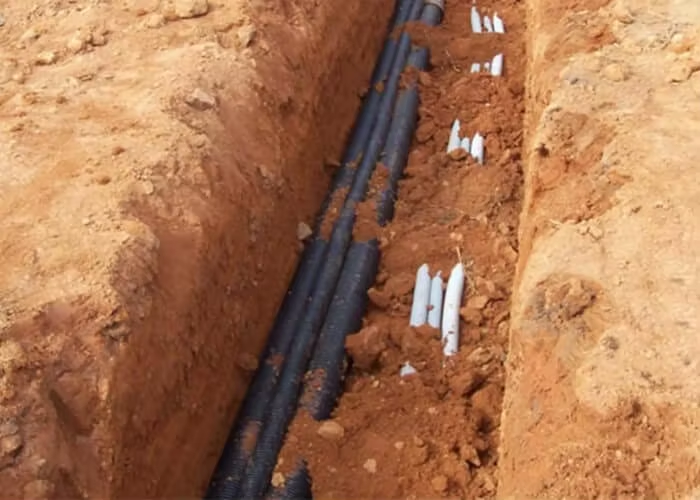

Installation Instructions
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable


Company Profile
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
Product packaging
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
Our Advantages
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
