Outdoor Fiber Optic Cable Non-metallic Cable Loose Tube 144 Cores FRP Single Mode GYFTY

Name: Outdoor Fiber Optic Cable Nonmetallic Cable Loose Tube 144 Cores FRP Single Mode GYFTY
Brand: PUNAISGD
Price: 1 USD

Quality Outdoor Fiber Optic Cable Non-metallic Cable Loose Tube 144 Cores FRP Single Mode GYFTY wholesale

Brand Name : PUNAISGD

Model Number : GYFTY-144b1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Type : GYFTY-144b1.3

Jacket Material : PE/LSZH

Out Jacket Color : Black

Strength Member Material : FRP

Service : OEM&ODM

Standard Length : 2,000m/4000m

Number Of Fiber : 96

Oem Factory : Yes

Operating Temperature : -40°C to +70°C

Name : Outdoor Fiber Optic Cable

Contact Now

Outdoor Fiber Optic Cable Non-metallic Cable Loose Tube 144 Cores FRP Single Mode GYFTY

GYFTY Fiber Optic Cable is a type of fiber cable which is widely used in areas with excessive thunder, power transmission system, and high electromagnetic interface. It is referred as a self-support fiber cable that doesn’t require any external support due to its central metallic part. That outstanding feature has rapidly enhanced its market demand. As at now, GYFTY Fiber Optic Cable is one of the most suitable fiber optic cables to be used in areas of high-voltage power.

OPTICAL CHARACTERISTICS
		G652	50/125μm	62.5/125μm
Attenuation (+20℃)	@850 nm		<=3.0dB/km	<=3.3dB/km
	@1300 nm		<=1.0dB/km	<=1.0dB/km
	@1310 nm	<=0.36dB/km
	@1550 nm	<=0.22dB/km
Bandwidth (Class A)	@850 nm		>=500 MHz*km	>=200 MHz*km
Bandwidth (Class A)	@1300 nm		>=1000 MHz*km	>=600 MHz*km
Numerical Aperture			0.200+-0.015NA	0.275+-0.015NA
Cable cut-off wavelength		<=1260 nm

Structure and Technical Specifications:

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No.of (Tubes+ fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance(N/100mm)



					Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
>144	Available upon customer request

Outdoor Fiber Optic Cable Non-metallic Cable Loose Tube 144 Cores FRP Single Mode GYFTY

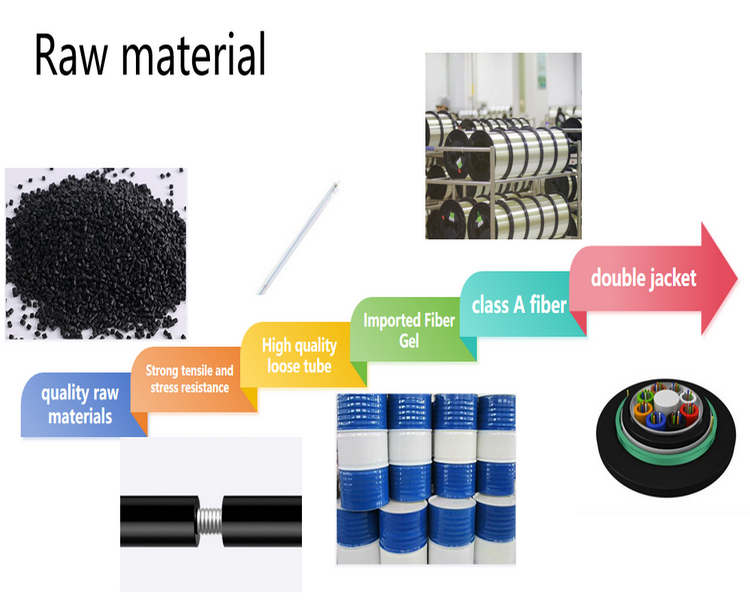

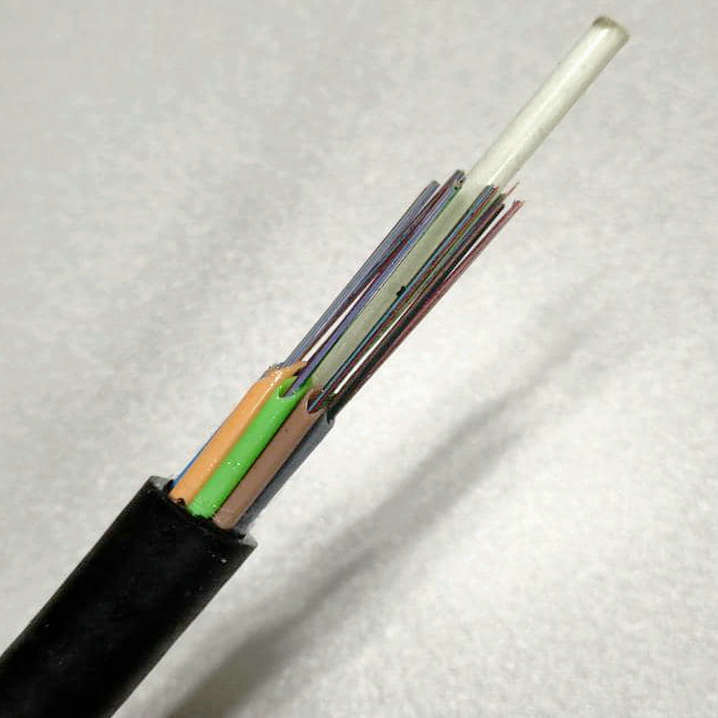

Details Images

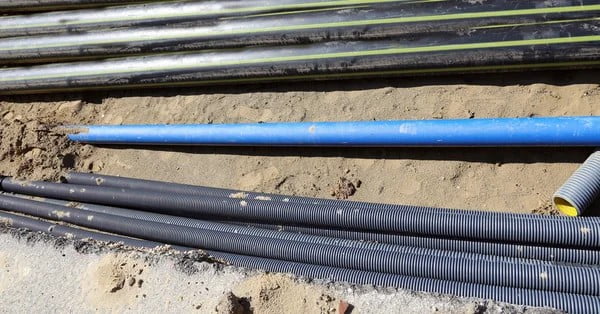

Installation Instructions

Product Paramenters

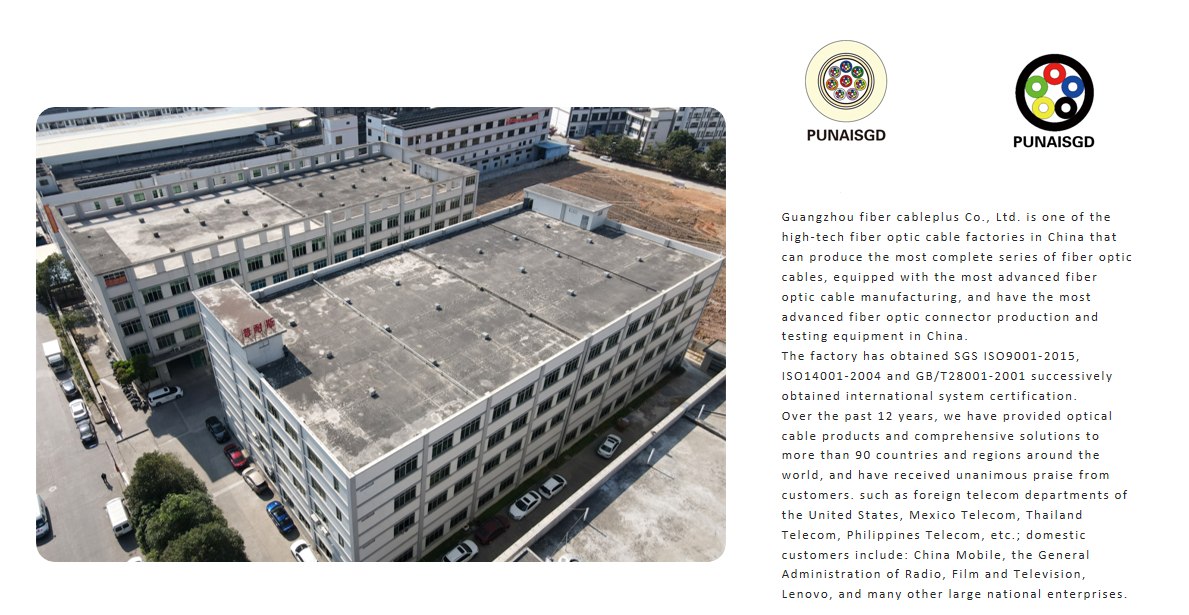

Company Profile

Product packaging

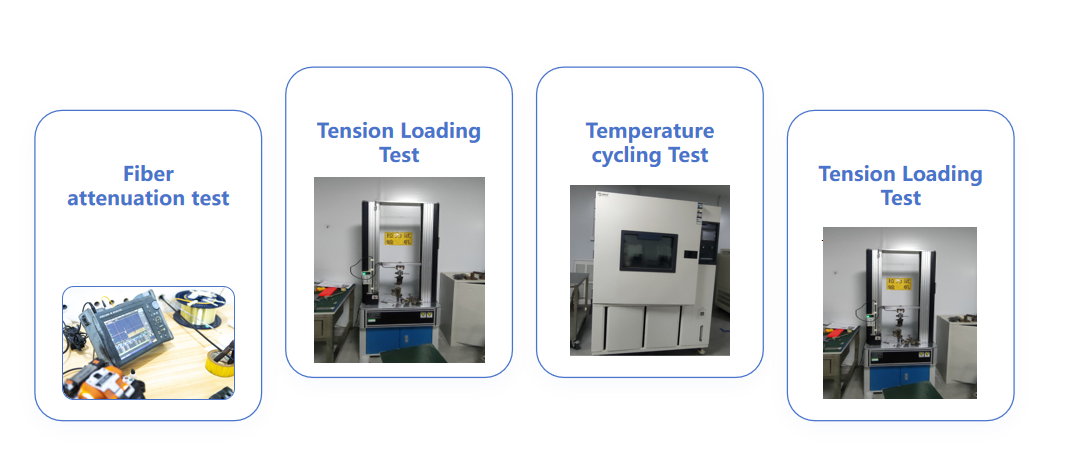

Our Advantages
